Operating Microscope



Binocular optical head with coaxial illumination only head imported

img It is designed for easy microsurgey. Especially for the eye.

img The adjustment of the height is made by counter-balance and the fine adjustment of the microscope is motorized by a footswitch operation without using hands.

img Easy sterilization protectors are attached on the magnification changer knobs and the microscope positioning handle.

img The five-steps magnification changer is incorporated in the OP-2; 0.4X, 0.6X, x-v unit (option) 1.0X, 1.6X and 2.5X, which permits a variety of the total magnifications of 2.6X, 4.1X, 6.4X, 1O.OX and 15.8X. Control knobs are located on both sides of the microscope head to permit the surgeon to conveniently select the desired magnifi- cation.

Specifications

Microscope
Binocular tube Inclined and straight
Type Manual 5 steps (drum type) (0.4X, 0.6X, 1.OX, 1.6X, 2.5X)
Objective Lens f=175mm
Eyepiece 10X
Total magnifications 2.6X, 4.1X, 6.4X, 1O.OX, 15.8X
Effective visual field Ø69, Ø44, Ø28, Ø18, Ø11.4
Vertical movement
     (fine adjustment) 		  36mm by motor
lllumination
lllumination method Coaxial illumination by light guide system using halogen lamp of 15V 150W (Philips Type 6423)

lllumination field diameter 49mmØ
Arm
Type Gas counterbalanced arm
Length 1,000mm
Vertical movement 400mm by manual operation
Stand
Floor stand with caster Size of base: 800mm
  Height: 1,150mm - 1,500mm
Option

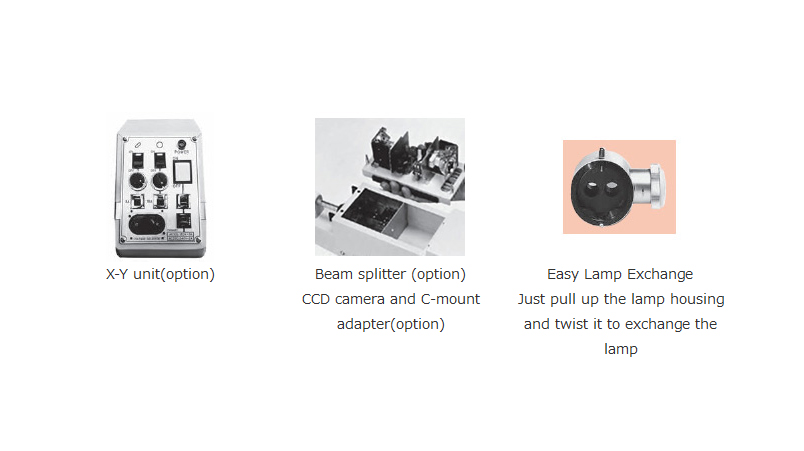

Beam splitter, C-mount adapter, CCD color camera, D1g1tal SLR Camera attachment, objective lens f=200mm, 250mm, 375mm, X-V Unit (with Foot Switch)




Operating Microscope OP-2



img The adjustment of the height is made by counter-balance and the fine adjustment of the microscope is motorized by a footswitch operation without using hands.

Easy sterilization protectors are attached on the magnification changer knobs and the microscope positioning handle.

The five-steps magnification changer is incorporated in the OP-2; 0.4X, 0.6X, 1.0X, 1.6X and 2.5X, which permits a variety of the total magnifications of 2.6X, 4.1X, 6.4X, 10.0X and 15.8X. Control knobs are located on both sides of the microscope head to permit the surgeon to conveniently select the desired magnification.


Microscope Binocular tube Inclined and straight
Type Manual 5 steps (drum type)
(0.4X, 0.6X, 1.0X, 1.6X, 2.5X)
Objective Lens f=175mm
Eyepiece 10X
Total magnifications 2.6X, 4.1X, 6.4X, 10.0X, 15.8X
Effective visual field φ69, φ44, φ28, φ18, φ11.4
Vertical movement
(fine adjustment)		 36mm by motor
Illumination Illumination method Coaxial illumination by light guide
system using halogen lamp of 15V
150W (Philips Type 6423)
Illumination field diameter 49mmφ
Arm Type Gas counterbalanced arm
Length 1,000mm
Vertical movement 400mm by manual operation;
Option Beam splitter, C-mount adapter, CCD color camera, Digital SLR Camera attachment, objective lens f=200mm, 250mm, 375mm, X-Y Unit (with Foot Switch)
